PVC insulation tape is a high-strength, elastic material specifically designed for use in industrial manufacturing facilities and energy infrastructure. It provides instant fixation and sealing on a wide range of metal and polymer surfaces.
PVC Industrial-130 features enhanced dielectric strength, withstanding breakdown voltage up to 6000 V without loss of protective properties. Its high elasticity allows it to tightly conform to complex geometries and cable splices without forming dangerous air gaps.
The coating is resistant to machine oils, alkalis, acids, and UV radiation, ensuring long-term durability in aggressive environments. PVC insulation tape withstands temperature fluctuations from -25 to +105°C, does not degrade under UV exposure, and remains flexible at low temperatures without becoming brittle.
The tape is self-extinguishing and flame-retardant, fully complying with strict fire safety standards for modern industrial environments. A wide color range (black, blue, red, white, yellow, green, and yellow-green) allows not only insulation but also color coding and phase identification of power lines.
PVC insulation tape meets all required quality certifications.
Main characteristics:

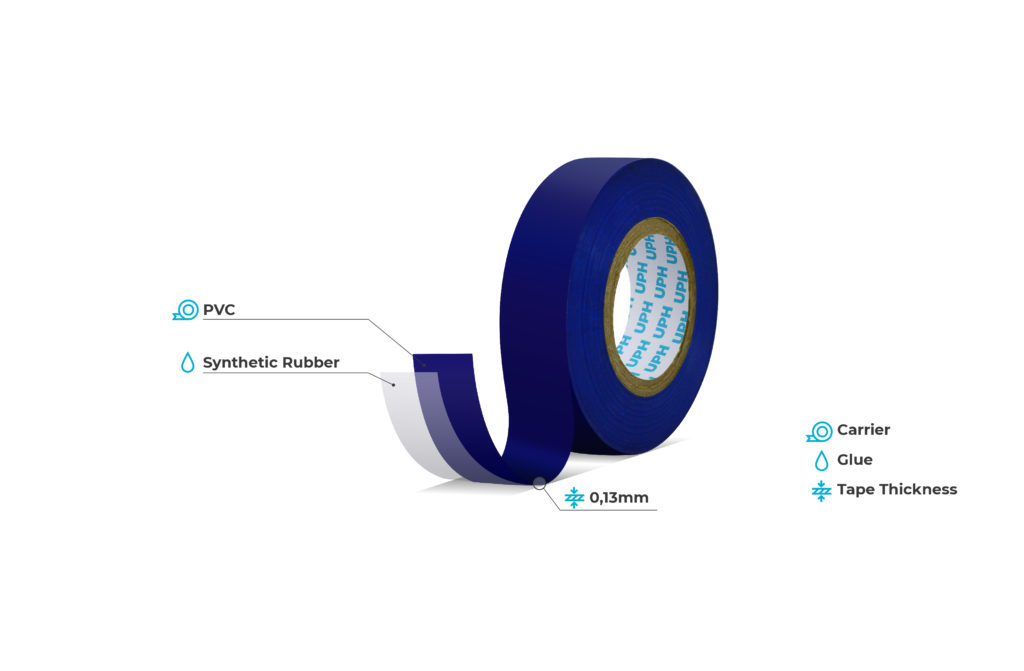

The basis of the tape:
PVC
Adhesive base:
synthetical rubber
Tape color:
blue, black, white, red, yellow-black
Adhesion strength:
4,9N/25mm
The relative elongation of the tape ASTM D3759:
250%
Operating temperature:
from -25 to +105°C
The time of optimal adhesion:
12 hours
Resistance to:
UV, moisture, dust, solvents
Compatibility with materials:
metal, glass, concrete, ceramics, plastic, rubber, PP, PE, wood
Application:
insulation and protection of high-voltage busbars and cable splices in distribution panels; bundling and forming complex wiring harnesses in machinery and equipment manufacturing; protection of metal pipelines and underground коммуникаций from soil and electrochemical corrosion; electrical insulation and protection of connections in drone, UAV, and equipment production; phase marking, grounding, and identification of power cables for quick visual recognition; temporary repair of damaged cable insulation on automated production lines; sealing of joints in технологическое equipment under high humidity conditions; fixation and bundling of large-diameter cables in cable trays and industrial routing systems.
PVC insulation tape is available in rolls of 15 mm × 10 m, 15 mm × 20 m, 15 mm × 30 m, 17 mm × 10 m, 17 mm × 20 m, 17 mm × 30 m, 18 mm × 10 m, 18 mm × 20 m, 18 mm × 30 m, 19 mm × 10 m, 19 mm × 20 m, 19 mm × 30 m, 50 mm × 10 m, 50 mm × 20 m, and 50 mm × 30 m. Custom production is also available according to individual width and length specifications.
Adhesive tapes from the manufacturer UKRPAK HOLDING INDUSTRIES are available under the trademarks TM UPH, TM MUSTANG, TM CARBON TAPE, TM ORIGINAL TAPE, and TM SENSO; on white cores (noname); as well as private label production options.
