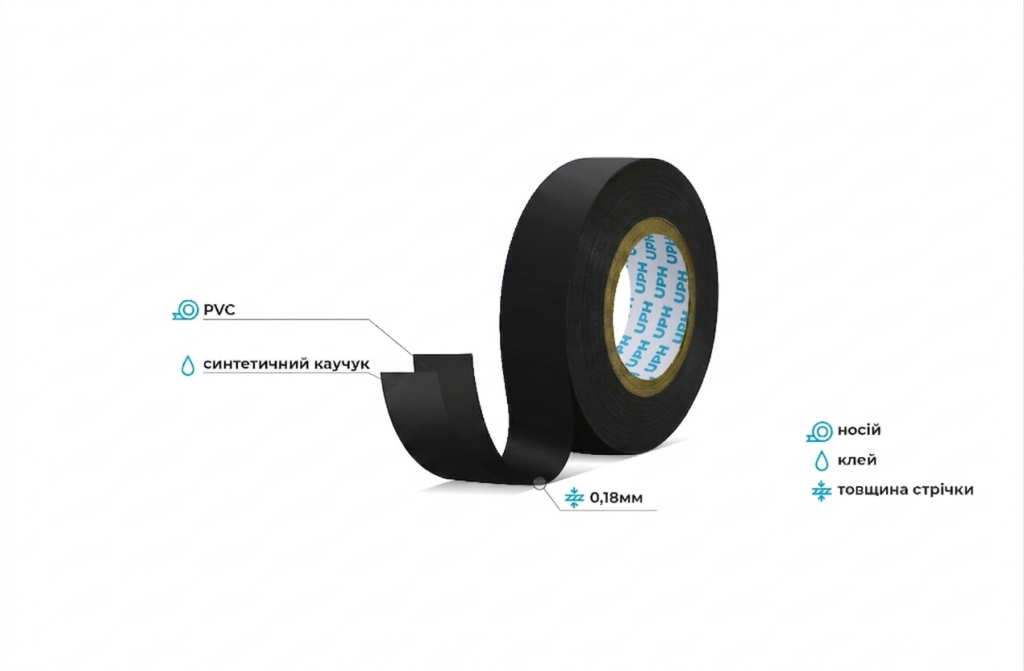

PVC insulation tape 180 microns is a reinforced dielectric material with increased strength, designed for harsh operating conditions and extreme loads.
This professional insulation tape, with a thickness of 180 microns and a durable polyvinyl chloride (PVC) base, is specifically engineered for applications where standard thin tapes cannot withstand the нагрузки. Due to its increased thickness and high material density, it provides exceptional protection against mechanical punctures, cuts, and abrasive wear.
The special rubber-based adhesive ensures instant adhesion and stable bonding that only strengthens over time without the risk of peeling. The PVC insulation tape features enhanced dielectric strength and can withstand a breakdown voltage of up to 6000V, making it indispensable for high-voltage industrial systems.
High elasticity allows the material to stretch without tearing, tightly conforming to complex shapes and creating a solid, sealed layer. The tape is resistant to aggressive воздействия such as technical oils, acids, alkalis, fuels, and UV radiation.
It is self-extinguishing and does not support combustion, fully meeting industrial fire safety standards. The tape does not become brittle at low temperatures (down to -30°C) and does not melt at high temperatures (up to +110°C).
Main characteristics:
Vendor code:
INDUSTRIAL-180 / ITP
The basis of the tape:
PVC
Adhesive base:
Synthetic rubber
Adhesion strength:
1.8 N/25 mm
Breakdown voltage:
6000 V
The relative elongation of the tape ASTM D3759:
220%
Operating temperature:
-30°C to +110°C
The time of optimal adhesion:
24 hours
Resistance to:
UV radiation, chemicals, and moisture
Compatibility with materials:
PVC, polyethylene (PE), polyurethane, rubber, PTFE, lead, copper, and aluminum
Application:
Applications include automotive industry (formation and protection of engine compartment wiring harnesses from friction, high temperatures, and aggressive fluids); energy sector (primary electrical insulation of high-voltage power cables and busbars in transformer substations); defense industry (protection of complex cable systems in specialized equipment, radar systems, and field devices); mechanical engineering (bundling cable routes and heavy-duty insulation of industrial equipment, machines, and conveyor lines); aviation (reliable sealing and wear-resistant protection of onboard wiring from moisture and salt fog); emergency repair (quick repair of damaged outer insulation of large cross-section cables); color marking (identification of phases and grounding in power lines according to industrial safety standards).
Black PVC insulation adhesive tape 0.18 mm is available in rolls of 15 mm × 20 m, 17 mm × 20 m, 18 mm × 20 m, 19 mm × 20 m, 20 mm × 20 m, 48 mm × 20 m, and 50 mm × 20 m. Custom sizes in width and length are also available upon request.
Adhesive tapes from the manufacturer UKRPAK HOLDING INDUSTRIES are available under the trademarks TM UPH, TM MUSTANG, TM CARBON TAPE, TM ORIGINAL TAPE, and TM SENSO, as well as on a white core (noname). Private Label production is also available.
